RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable

RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable

waterproof RF coaxial cable

HSD4P male female connector

spiral video wire harness

Luogo di origine:

Jiangsu, Cina

Marca:

RY

Numero di modello:

LD5-101-3000-ZZ

Contattici

Richieda una citazione
RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable
Dettagli del prodotto
Applicazione:
Automobile
Termini di trasporto & di pagamento
Quantità di ordine minimo
30
Prezzo
$2-3
Prodotti relativi
Buon prezzo RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable in linea

RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable

Ottenga il migliore prezzo
Buon prezzo Custom Molex Micro-Fit 3.0 Series 3mm Pitch 10 Circuits 2 Row Male Straight Crimp Connector Molded Cable Wire Harness 430251000 in linea

Custom Molex Micro-Fit 3.0 Series 3mm Pitch 10 Circuits 2 Row Male Straight Crimp Connector Molded Cable Wire Harness 430251000

Ottenga il migliore prezzo
Buon prezzo RY 8mm 25pcs Solderless LED Tape Light Connector 2 Pin Screw Down Terminal Block Connector Led Connectors for Strip Lights in linea

RY 8mm 25pcs Solderless LED Tape Light Connector 2 Pin Screw Down Terminal Block Connector Led Connectors for Strip Lights

Ottenga il migliore prezzo
Buon prezzo Custom 430251000 MOLEX 10pin 20pin Micro Fit 3.0 Male to Male Straight Crimp Connector Molding Cable Terminal Wire Harness in linea

Custom 430251000 MOLEX 10pin 20pin Micro Fit 3.0 Male to Male Straight Crimp Connector Molding Cable Terminal Wire Harness

Ottenga il migliore prezzo
Contattici
86--13405295160
info@rygroup.net
Contatto ora
Descrizione di prodotto
RY HSD Waterproof Connector Wire Harness
HSD4P male and female connector RF high-frequency coaxial spiral video cable designed for reliable performance in demanding industrial applications.
Product Specifications
Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Insulator Material LCP
Signal Contacts CuZn / CuSn (Brass, Bronze)
Dielectric PA / LCP
Gasket Silicone / Rubber
Crimping Ferrule CuSn (Bronze)
Plastic Housings and Secondary Lock PA / PBT
Impedance 100 Ω
Frequency Range DC～6GHz
Voltage Rating 100 VRMS Max Continuous
Dielectric Withstanding Voltage 250 VRMS Min
Insulation Resistance 1000 MΩ Min
Contact Resistance 10 MΩ Max (Center) / 7.5 MΩ Max (Outer)
Temperature Range −40°C to +105°C
Mating Cycles 25 Min
Coupling Mechanism Push-On

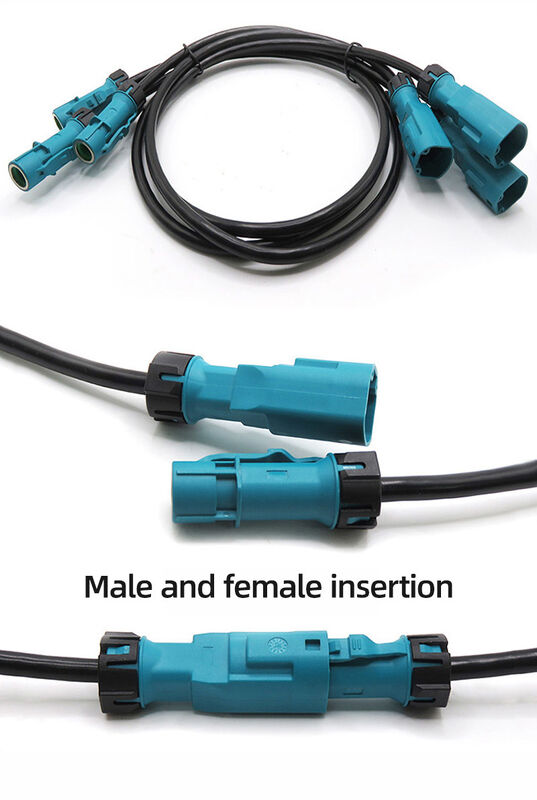

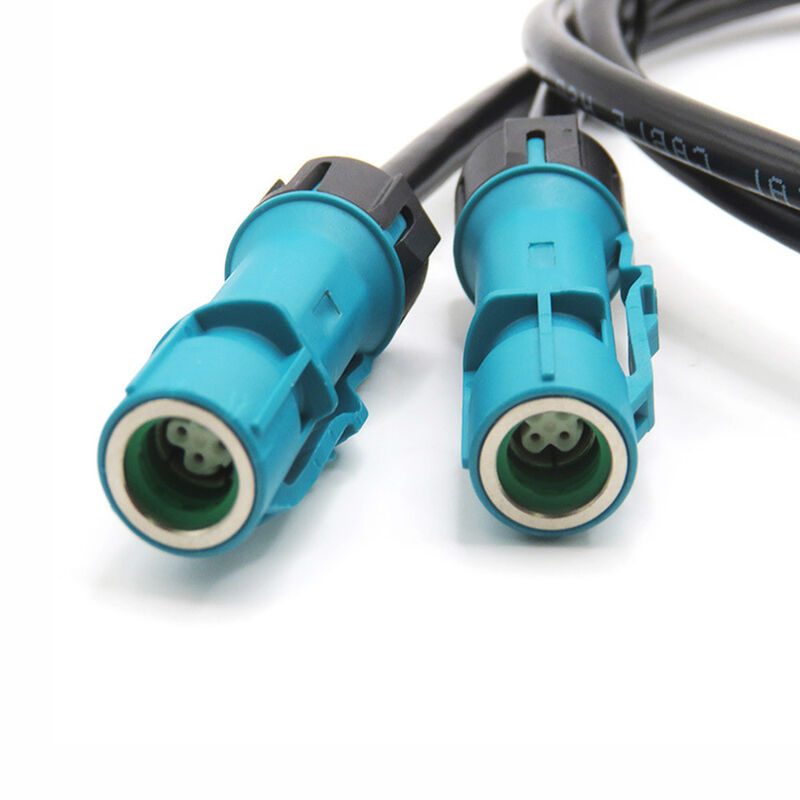

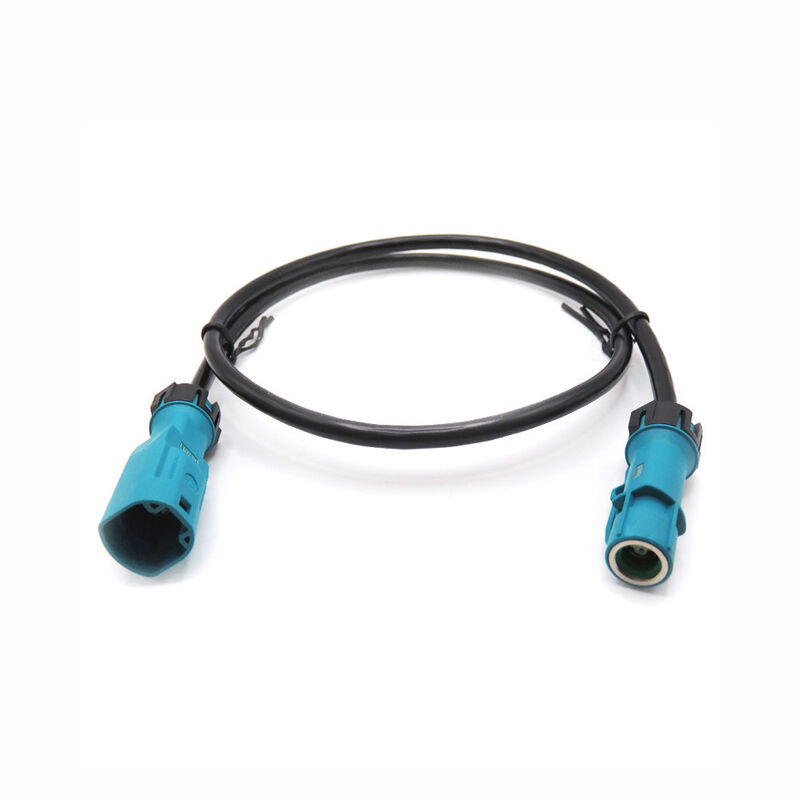

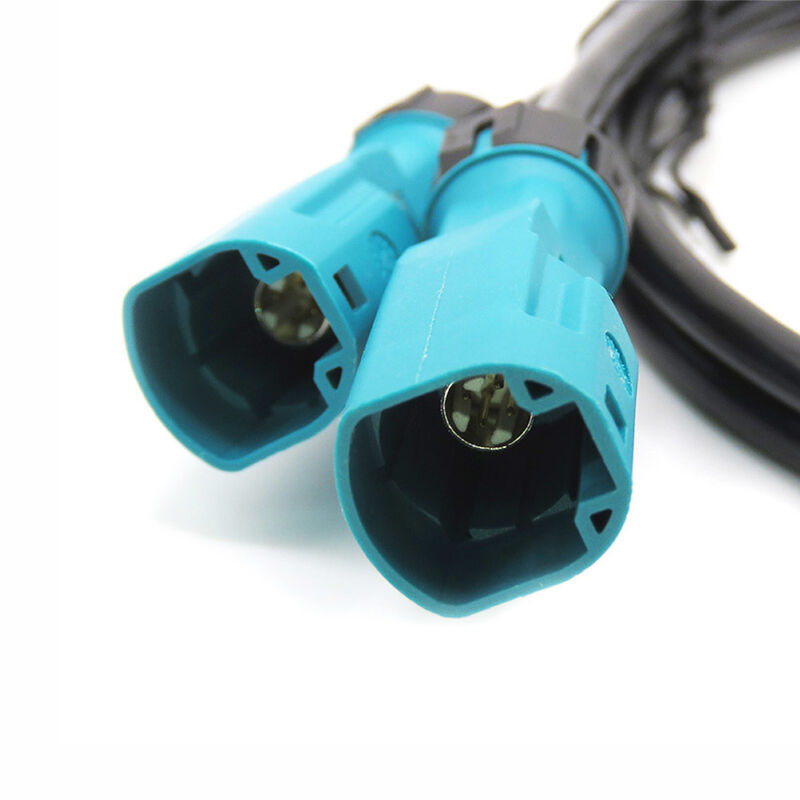

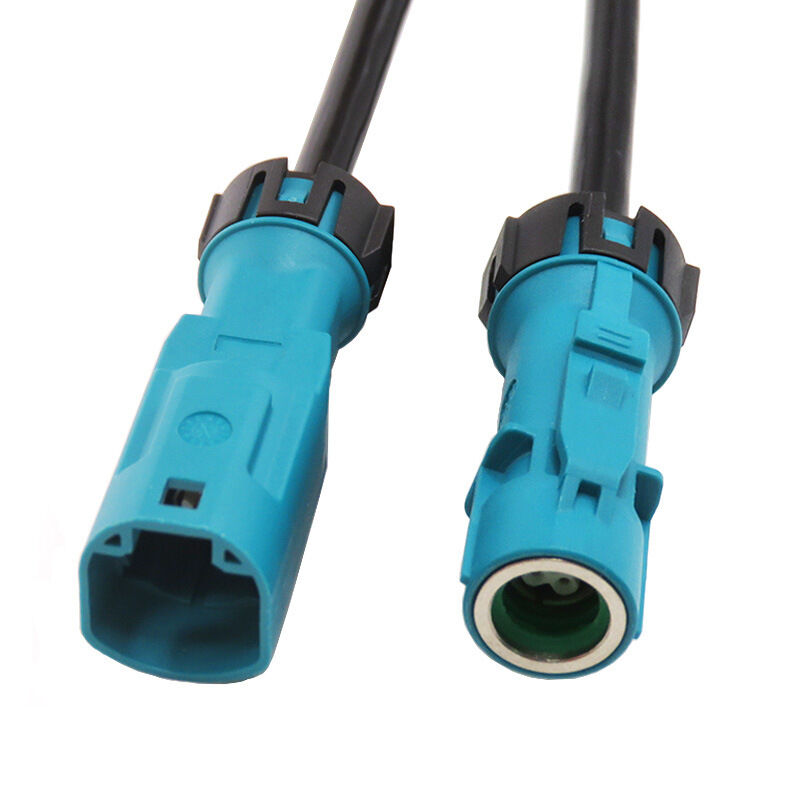

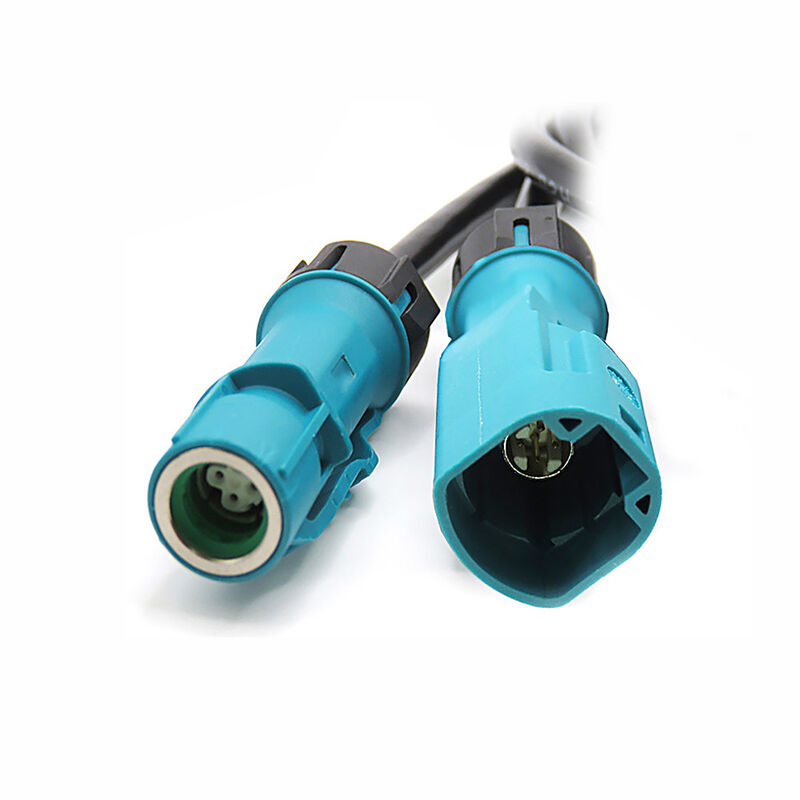

Product Images
RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 0 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 1 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 2 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 3 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 4 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 5 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 6 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 7 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 8 RY HSD Waterproof Connector Wire Harness Hsd4p Male and Female Connector RF High-frequency Coaxial Spiral Video Cable 9
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.
What's the delivery time?
It usually takes about 1-3 days to produce samples and 3-7 days to produce the products.
What's your payment term?
We usually accept PAYPAL, T/T as the main payment term, and other payments can also be negotiated.
Quality problems?
If there is any quality problem or question, we could offer technical support or return service.
How to contact us?
Send your Inquiry Details in the Below, Click "Send" Now! Free sample and best answers are waiting for you.
