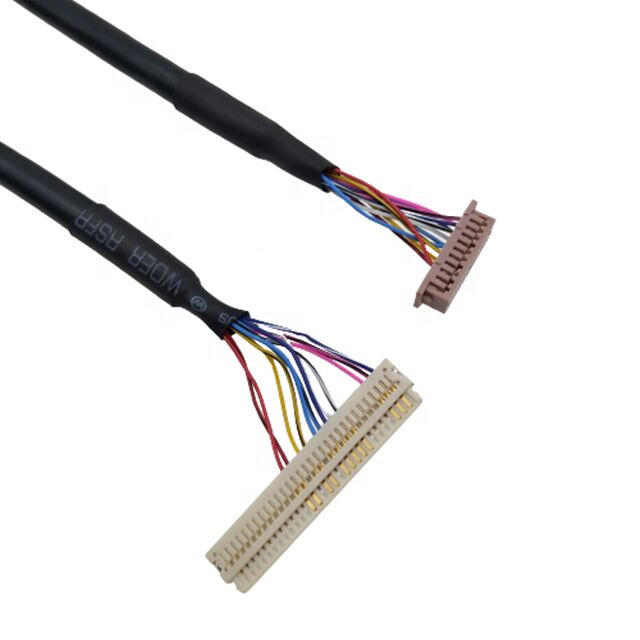

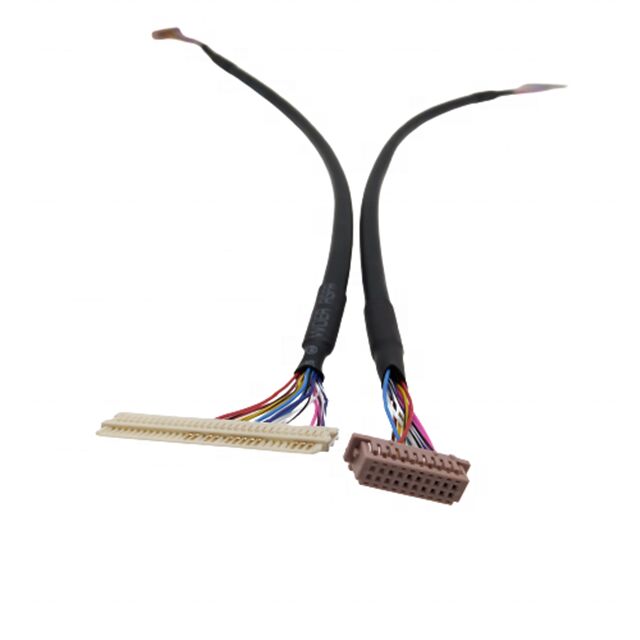

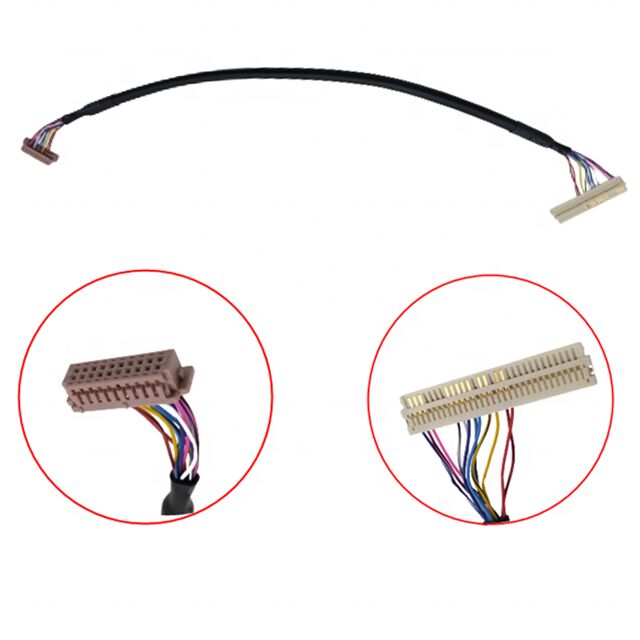

Name: General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: Cavo Jae RY-8163 lvds
Price: 6.10 USD
Availability: InStock

Casa > PRODOTTI > Assemblaggio cavi di LVDS >

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

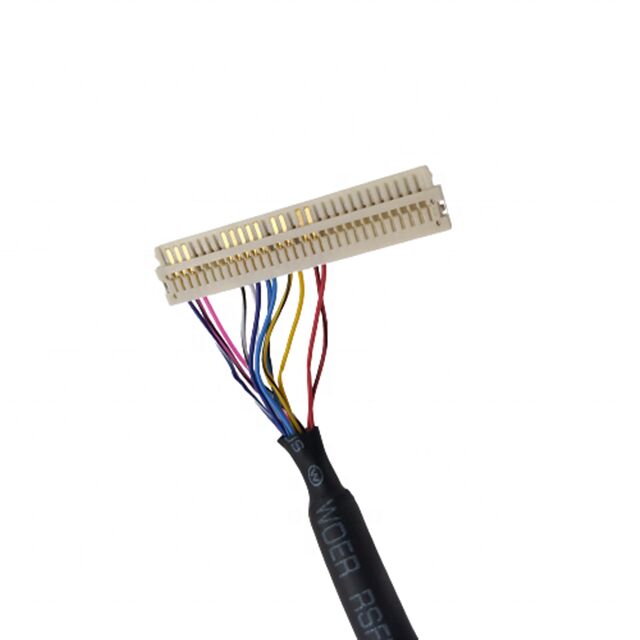

JAE FI-x30 30Pin LVDS cable

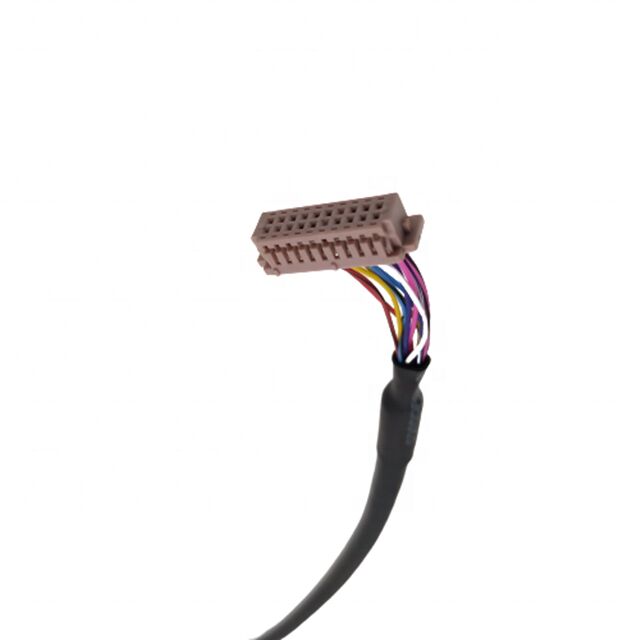

Hirose 20Pin DF13 shielded wire

Twisted LVDS cable for driver board

Luogo di origine:

Jiangsu, Cina

Marca:

RY lvds Jae Cable

Certificazione:

RoHS

Numero di modello:

Cavo Jae RY-8163 lvds

Contattici

Richieda una citazione

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Dettagli del prodotto

Materiale conduttore:

Rame

Connettore 1:

JAE FI-X30

Connettore 2:

Hirose DF13

Pece:

1,0 mm/1,25 mm

Tipo di filo:

20276

Lunghezza del filo:

25 cm

Genere:

Da maschio a femmina, da maschio a maschio

Dimensione del filo:

22-30AWG

Perni:

2-60 pin

Tipo di cavo:

32AWG,30AWG,28AWG,26AWG

Tipo di scudo:

Singolo/doppio/senza schermatura

Colore del cavo:

nero/grigio

Lunghezza del cavo:

50 mm-15000 mm

Tipo di elaborazione:

Crimpatura, pressatura, saldatura

Passo del connettore:

0.3mm-4.2mm

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prodotti relativi

86--13405295160

info@rygroup.net

Contatto ora

Descrizione di prodotto

General LCD LVDS Screen Cable

JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Product Specifications

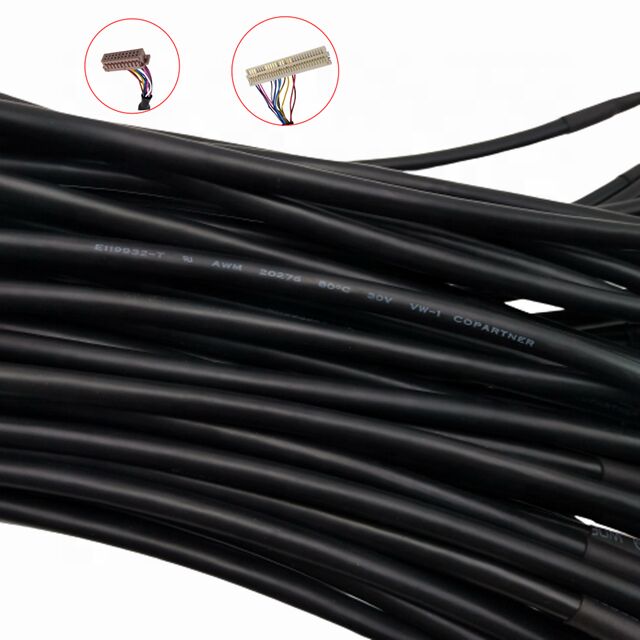

Cable Type	32AWG, 30AWG, 28AWG, 26AWG LCD 20cores single/double shield cable LCD 32cores single/double shield cable LCD 20cores/32cores non-shield cable
Cable Color	Black/Grey
Connectors	JAE, HRS, JST, AMP, Dupont, ufl, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors
Cable Length	50mm - 15000mm
Processing Methods	Crimping, pressing and soldering types
Pin Out Connection	Customized per customer's request (provide LCD and main board datasheets)
Connector Pitch Range	0.3mm - 4.2mm
Performance Characteristics	Excellent signal transfer, clear picture quality, no shaking or transfer issues

Key Advantages

Direct manufacturing factory
Competitive pricing with quality assurance
Short lead times
ISO9001:2008 certified
OEM/ODM services available
ISO/RoHS compliant
100% electrical and performance testing

Applications

LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA/Camera/LCM/Notebook/Tablet PC/HDD

Company Profile

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
